Nitta Change System is a revolutionary automatic tool changing device which equip robots with toll changing function and ultimately make them more flexible towards diverse application. This system can transfer air, water, electric current and signal inside, which is applied to robots especially. With the Xchange System, a single robot will be transformed into a versatile tool – wielding master, as a result, you will get greater automation easily.
Improving performance of various industrial machineries through high-speed, high-load transmission. Utilized in transmission and conveyor applications for various industrial machineries.

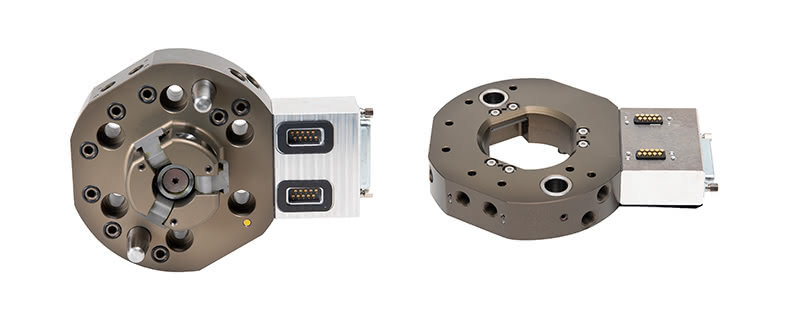

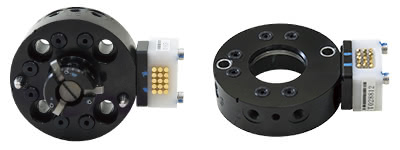

A high rigid tool changer adopting a large calibre cylinder, and unique cam lock system, achieving a load capacity of 30kg.
Most suitable for hand changing in press-to-press handling its surpassing allowable moment.
Chuck / unchuck sensor is included as the first standard component in this class.
A high rigid tool changer adopting a large calibre cylinder, and unique cam lock system, achieving a load capacity of 60kg.
Most suitable for hand changing in press-to-press handling its surpassing allowable moment.
High reliability and safety of the tool changer with Chuck / Unchuck sensor make it your choice. Outdoor types are also available.
A high rigid tool changer adopting a large calibre cylinder, and unique cam lock system, achieving a load capacity of 120kg.
Most suitable for press-to-press hand changing due to its superior allowed moment.
Equipped with a Chuck / Unchuck sensor, this product is the ultimate material-handling changer system and offers a superior level of safety and reliability.
A unique tool changer compactly designed and low priced with a load capacity of 200kg. It covers a wide service are from spot welding to large scale material handling. Moreover, it can be used for servo gun change. Built-in proximity sensors send signals for chucking, unchucking and coupling check end, all of which can be used for interlock circuits.
Designed to apply to heavy payload as our current reliable OMEGA IV’s succession. Its payload is located between OMEGA IV and XC-400 and thickness is the same as OMEGA IV although payload is bigger.
A high rigid tool changer adopting a large calibre cylinder, and unique cam lock system, achieving a load capacity of 400kg.
Most suitable for heavy load hand changing due to its superior allowable moment. Equipped with outstanding large-sized tool changing system with a superior level of safety and reliability.
NITTA Tool Changers contain spring designed to make cams operate to chuck each adopters in case the air is blocked by accidental causes ( Fail safe mechanism ). Cause of this mechanism ATCs won't fall down with normal use. But in
unexpected situation as mentioned at right side, there is a possibility that tool adopters fall down. The Fall Prevent System is optional tool designed for prevent unexpected fall down before it happens.
Modules of Favorable Omega 4 as Nitta Tool Changer can be applied to NITTAOMEGA TypeM. Omega 4 can be replaced by NITTAOMEGA TypeM without tool side big change in the current process which is using Omega 4.
NITTAOMEGA TypeM is adapted to air gun and servo gun depend on the component combination. This is "Next generation version of Omega 4".
This interface unit is used in the automobile manufacturing process mainly and for the application of air / signal supply to Jig and transportation car automatically in the step of car type change.
The unit integrates multi-contact signal communication channels required for material handling tooling applications. It talks to high-spped serial communication devices via a smoothly rotating disk,
This unit can be adapted for "earth-grounded" applicaitons as well, with optional contacts.
All modules can be used with both the Omega IV, XC-300, XC-400 are flexible to diverse applications. Many kinds of modules can transfer air, water, electric current and signal inside.
Every modules has the same setting pattern to adaptoprs so that you can choose the modele position as you like. Modules out of aur standard can be designed by your request. Modules for other type odf tool changers also can be realized.
